Your Current Location: Home > Printing & Finishing > Electric Paper Cutter

480DS

Roll over the image above to zoom or view large image

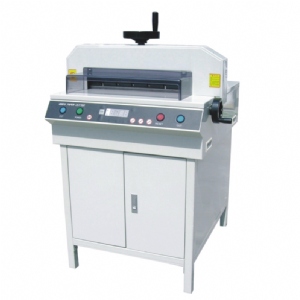

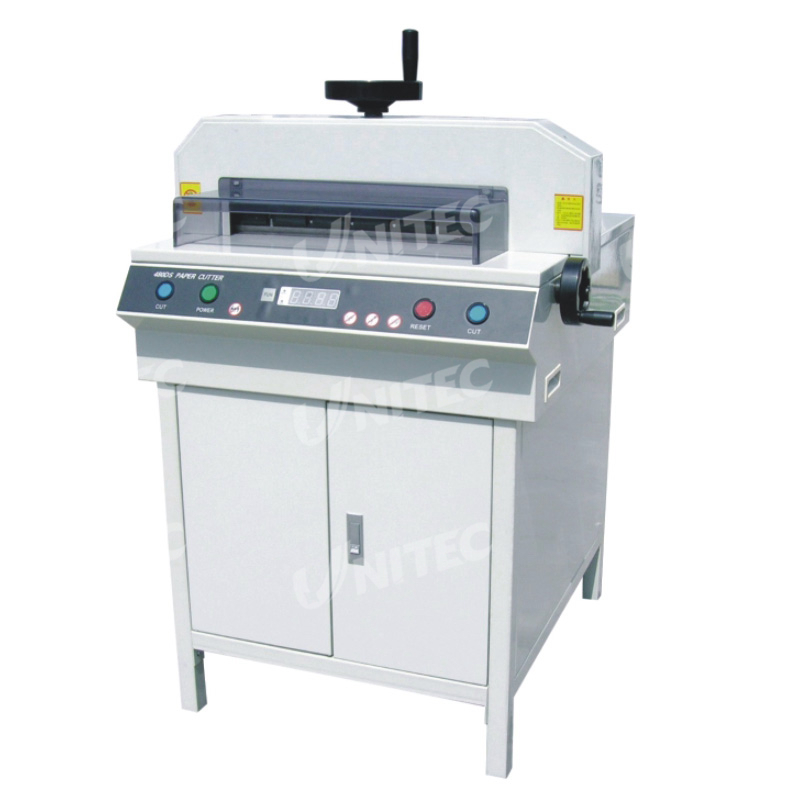

Digital Display Paper Cutter
With Manual Spindle Clamp

Technical Details:
◆Digital display for measurement readout in mm
◆Electro-mechanical blade drive
◆Manual spindle clamp, guided on both sides, with
large hand wheel
◆Spindle guided backgauge with hand wheel
◆Optical cutting line
◆Automatic blade return
◆Touching panel and electronically controlled true
two-hand operation

Product
Details

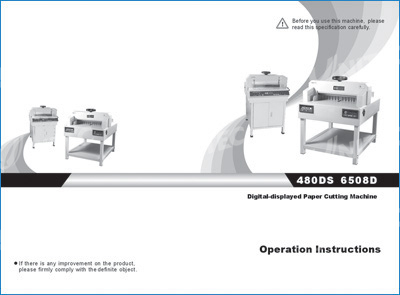

Operation
Manual
Service
Manual

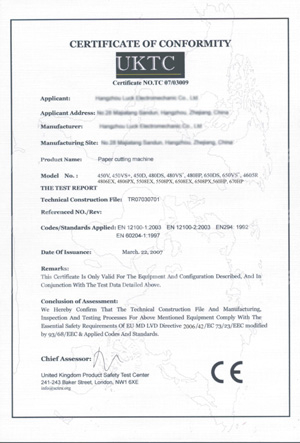

Certificate

Specification:

Model		480DS
Cutting Length		480mm
Cutting Heigh		53mm
Table Depth		480mm
Narrow Cut		40mm
Paper Press system		manual spindle clamp
Paper Push system		manual hand wheel
Power Supply		AC110、220V/60、50Hz
Motor Performance(input capacity)		750W
Dimension(H×W×D)		1100×820×740mm
Weight		123.0kgs

CE 480DS.pdf
