  Details

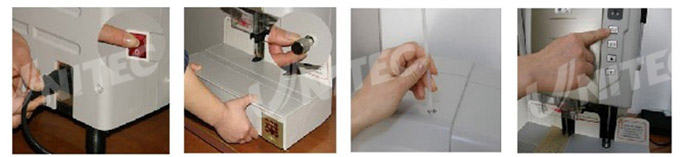

   1.Turn on the power               2.Adjust the talbe                 3.Insert the plastic tube         4.Punch the paper
                                                                                           into the machine

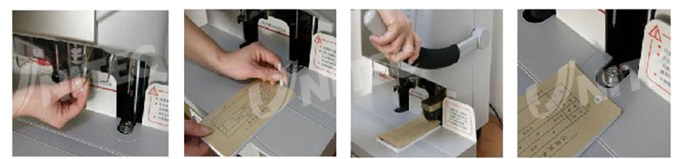

   5.Take out the plastic tube     6.Put the plastic tube in the   7.Binding and pressing          8.Binding finished
                                                punching hole



Specification:

Model		YTB-50
Power supply		Voltage 220V±5%V
Frequency		50Hz
Power consumption		≤350W
Drill bit		Φ6×50mm hollow drill bit
Binding method		Nylon tube heat compression molding
Binding capacity		1～50mm(≤75g/m2) high grade paper
Warm-up time (for binding)		Approx.5min
Table Size		480(D)×200(W)mm
Weight		32.0kgs
