 Your Current Location: Home > Binding System > Punch Machine

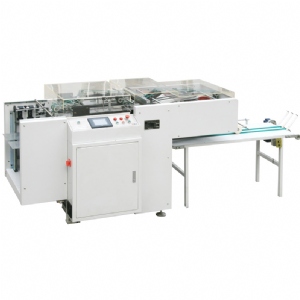

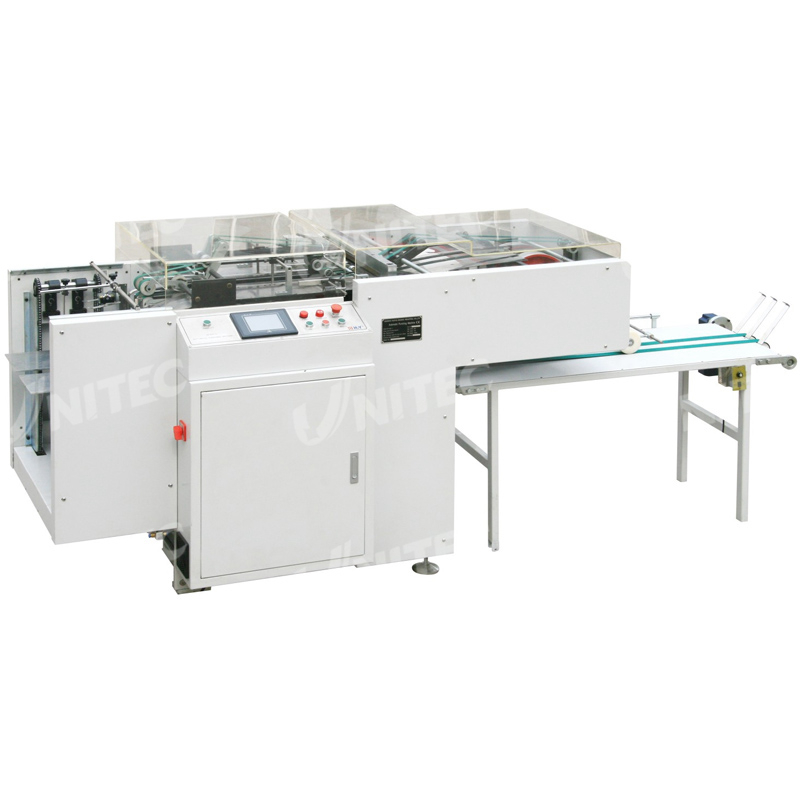

AP400


Automatic Punch Machine

¡ô Maximum Punching thichness:2mm
¡ô Maximum Punching sizes:420¡Á420mm
¡ô Minimum Punching sizes:140¡Á140mm
¡ô Adjustable speed up to 120 strokes/minute
¡ô Punching margin from the edge:adjustable as
    customers requirements
¡ô Two discharge options:high pile reception unit
    or a conveyer
¡ô Paper thickness From 60gsm to 220gsm

    Mould No.
    Pitch

    Punching Hole

    Pitch (mm)
    Hole Size
    Pins
    Wire Size
    HF301
    3:1
    8.47
    4¡Á4
    71
    3/16¡«9/16"
    HF302
    3:1
    8.47
    4.5¡Á4
    71
    3/16¡«9/16"
    HF303
    3:1

    8.47
    4.2¡Á4.2
    71
    3/16¡«9/16"
    HF501
    3:1

    8.47
    4¡Á3
    71
    Spiral
    HO401
    3:1

    8.47
    ¦µ5
    71
    3/16¡«9/16"
    HF304
    3:1
    8.47
    5¡Á5
    71
    7/16¡«9/16"
    HF305
    2:1

    12.7
    4¡Á4
    47
    1/4¡«9/16"
    HF306
    2:1

    12.7
    4.5¡Á4
    47
    1/4¡«9/16"
    HF307
    2:1

    12.7
    4.2¡Á4.2
    47
    1/4¡«9/16"
    HF308
    2:1

    12.7
    6¡Á6
    47
    5/8¡«1+1/2"
    HO402
    2:1

    12.7
    ¦µ5
    47
    5/8¡«3/4"
    HF309
    2:1

    12.7
    4¡Á4.5
    47
    5/16¡«5/8"
    HT503
    4:1

    6.35
    4¡Á3
    94
    Spiral
    HO403
    4:1

    6.35
    ¦µ3.5
    94
    Spiral
    HF310
    12.7

    12.7
    3¡Á8
    47
    Comb

    Technical Data:

    Model

    		 AP400
    Max.paper Size 420¡Á420mm
    Min.paper Size 140¡Á140mm
    Max.paper Thickness 2mm(standard:1.5mm)
    Max.cycle Speed 120 strokes/min
    Power Supply 380VAC/3PH/50HZ/3KW
    Dimensions(With High Pile Reoeption Unit) 2200¡Á1000¡Á1300mm
    Dimensions(With Conveyor)   2200¡Á1600¡Á1300mm
    Machine Weigh   720.0kgs
    Air Compressor   Optional
    Compressed Air Pressure(Potional)   3¡«6bar

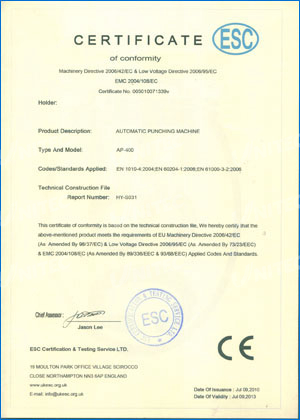

AP-400 CE.pdf
