Your Current Location: Home > Printing & Finishing > Creasing & Perforating

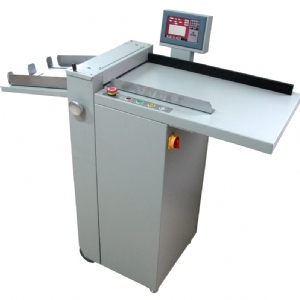

NCC330

Roll over the image above to zoom or view large image

◆ 4000 sheets per hour
◆ 6 custom programmable applications
◆ Crease up to 400 GSM(120lb.cover)
◆ Up to 10 creases in one pass
◆ UpTO 990×330mm sheet size

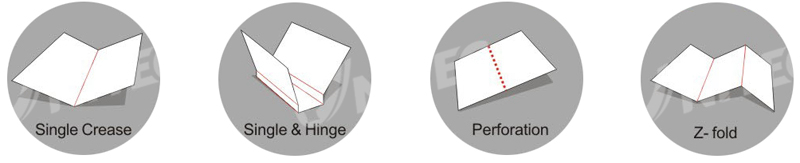

◆ Breadthwise creasing and lengthways
perforating can work synchronously.

Product
Details
Operation
Manual
Demonstration
Video

Specification:

Model		NCC330
Max.sheet size		990mm×330mm
Min.sheet size		140mm×160mm
Paper thickness		80-400gsm
Min.ripeat crease distance		3mm
Max.number of creases/sheet		10 lines
Max.number storable addresses		19 groups
Max.speed per hour		About 4000 sheets
Power supply		AC110、220V/50、60Hz
Machine weight		80 kgs
Dimension(L×W×H)		870×570×1070mm

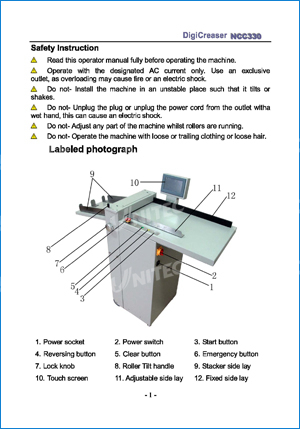

NCC330 Operation Manual.pdf
