Your Current Location: Home > Laminating System > Single Sided Laminator

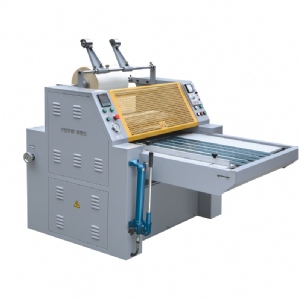

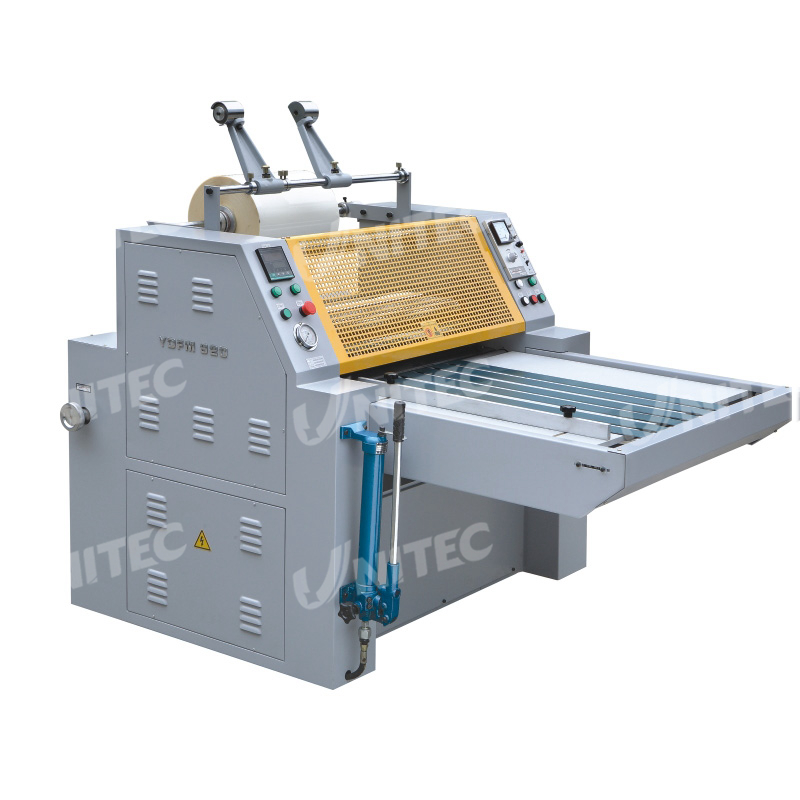

YDFM-720/ YDFM-920/ YDFM-1200

Roll over the image above to zoom or view large image

● Fast Warm-Up Time
● Manually feed and manually separate
● Hydro pneumatic pressure system
● It comes with a loading conveyor belt
for easy manual feeding

◆Model: YDFM-720
◆Packing: 1pc/wooden case
◆Carton Size: 192x128x155cm
◆G.W: 500.0kgs/ctn

◆Model: YDFM-920
◆Packing: 1pc/wooden case
◆Carton Size: 192x148x155cm
◆G.W: 600.0kgs/ctn

◆Model: YDFM-1200
◆Packing: 1pc/wooden case
◆Carton Size: 192x176x152cm
◆G.W: 700.0kgs/ctn

Product
Details
Operation

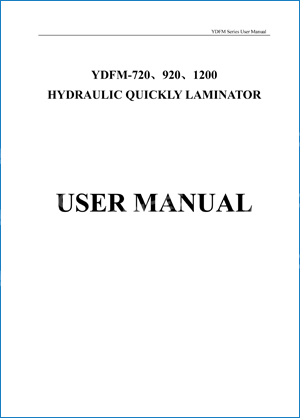

Manual
Certificate
Demonstration
Video

Specification:

Model	YDFM-720	YDFM-920	YDFM-1200
Power Supply	AC380V/50Hz,3N	AC380V/50Hz,3N	AC380V/50Hz,3N
Heating Power Consumption	4000W	6000W	6500W
Motor Power Consumption	550W	750W	1200W
Max.Sheet Format	620(W)×880(L)mm	820(W)×1040(L)mm	1000(W)×1040(L)mm
Paper Thickness	125～500g/m²	125～500g/m²	125～500g/m²
Laminating Speed	0-40m/min	0-40m/min	0-40m/min
Warm up time	15mins	15mins	15mins
Heating System	Hot Roller	Hot Roller	Hot Roller
Max.Operating Temperature	130℃	130℃	130℃
Feeding	Manual	Manual	Manual
Separation	Manual	Manual	Manual
Main Roller Pressure	Pneumatic Cylinder	Pneumatic Cylinder	Pneumatic Cylinder
Laminating Roller Surface	Chrome	Chrome	Chrome
Dimension(L×W×H)	1900×1300×1600mm	1900×1500×1600mm	1900×1700×1600mm
Weight	400.0kgs	500.0kgs	600.0kgs

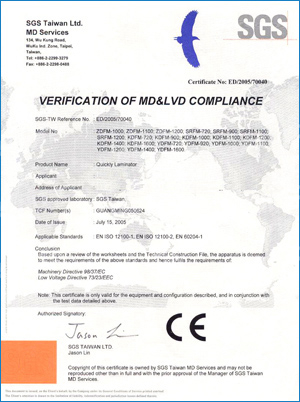

KDFM,YDFM CE certificate.pdf
