Your Current Location: Home > Printing & Finishing > Electric Paper Cutter

BW-R670V2

Roll over the image above to zoom or view large image

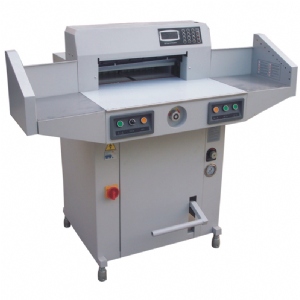

Hydraulic &Programmable Paper Cutter

Technical Datails:
◆Hydraulic clamp drive
◆Automatic clamp system, guided on both sides
◆Power backgauge with fully programmable"EP"
backgauge control panel
◆Optical cutting line
◆Automatic blade return

EP Back gauge Control Panel:
◆LCD display for measurement readout in cm or inches
◆10-button key panel for presetting of measurement
◆Memory key for repeat cuts
◆9 progams with 9 steps in each program

Clamping Pressure Adjustment Foot Pedal

Product
Details
Certificate

Specification:

Model	BW-R520V2	BW-R670V2
Cutting Length	520mm	670mm
Cutting Heigh	65mm	80mm
Table Depth	520mm	670mm
Narrow Cut	30mm	35mm
Paper Press system	antomatic clamping system	antomatic clamping system
Paper Push system	power backgauge	power backgauge
Power Supply	AC110、220V/60、50Hz	AC110、220V/60、50Hz
Motor Performance(input capacity)	1700W	2300W
Dimension(H×W×D)	1450×1135×876mm	1470×1360×1160mm
Weight	280.0kgs	350.0kgs

CE BOWAY Paper Cutter BW-R670V2.pdf
