Your Current Location: Home > Laminating System > Single Sided Laminator

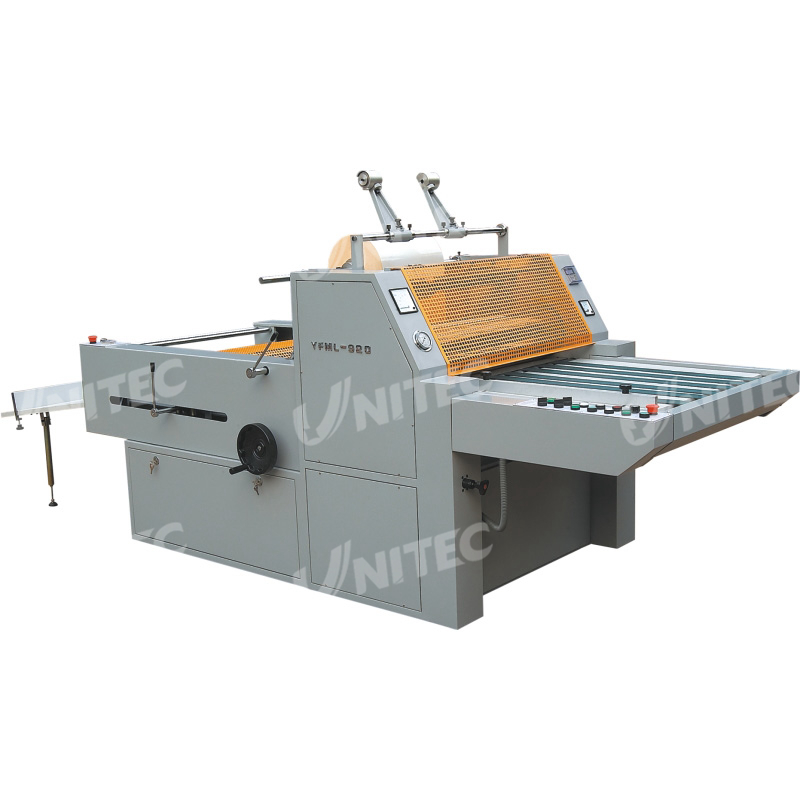

YFML-720/ YFML-920/ YFML-1200

Roll over the image above to zoom or view large image

● High speed system with separator
● Hydro pneumatic pressure system
● The separator automates the back end operation
and dropping them into a reception table

◆Model: YFML-720
◆Packing: 1pc/wooden case
◆Carton Size: 230x132x165cm
◆G.W: 850.0kgs/ctn

◆Model: YFML-920
◆Packing: wooden case
◆Carton Size: 248x155x170cm
◆G.W: 1050.0kgs/ctn

◆Model: YFML-1200
◆Packing: wooden case
◆Carton Size: 298x183x170cm
◆G.W: 1250.0kgs/ctn

Product
Details

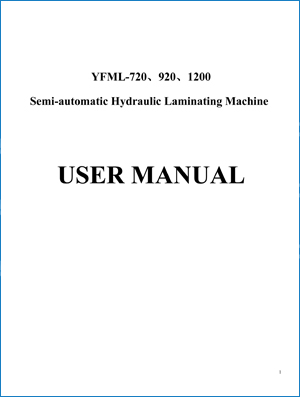

Operation
Manual

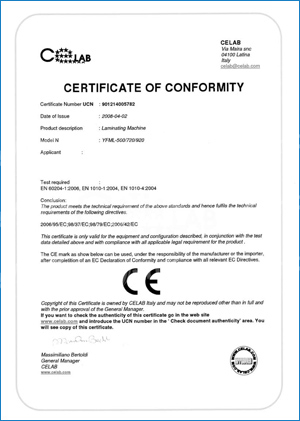

Certificate

Specification:

Model	YFML-720	YFML-920	YFML-1200
Power Supply	AC380V/50Hz,3N	AC380V/50Hz,3N	AC380V/50Hz,3N
Power Consumption	6900W	8700W	9500W
Max.Sheet Format	620(W)×880(L)mm	820(W)×1040(L)mm	1000(W)×1040(L)mm
Paper Thickness	125～500g/m²	125～500g/m²	125～500g/m²
Laminating Speed	0-40m/min	0-40m/min	0-40m/min
Warm up time	25mins	25mins	25mins
Heating System	Hot Roller	Hot Roller	Hot Roller
Max.Operating Temperature	130℃	130℃	130℃
Feeding	Manual	Manual	Manual
Separation	Automatic	Automatic	Automatic
Main Roller Pressure	Pneumatic Cylinder	Pneumatic Cylinder	Pneumatic Cylinder
Laminating Roller Surface	Chrome	Chrome	Chrome
Dimension(L×W×H)	3850×1150×1450mm	3980×1350×1450mm	3850×1550×1450mm
Weight	700.0kgs	900.0kgs	1100.0kgs

YFML CE.pdf
