Your Current Location: Home > Laminating System > Single Sided Laminator

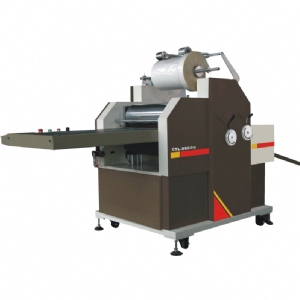

CTL-SS880

Roll over the image above to zoom or view large image

● Compact design and user-friendly
● High speed system with separator
● Hydro pneumatic pressure system
● The separator automates the back end operation
and dropping them into a reception table

◆Model: CTL-SS550
◆Packing: 1pc/wooden case
◆Carton Size: 69.5x30.6x41.5cm
◆G.W: 16.0kgs/ctn

◆Model: CTL-SS800
◆Packing: 1pc/wooden case
◆Carton Size: 69.5x30.6x41.5cm
◆G.W: 16.0kgs/ctn

Product
Details

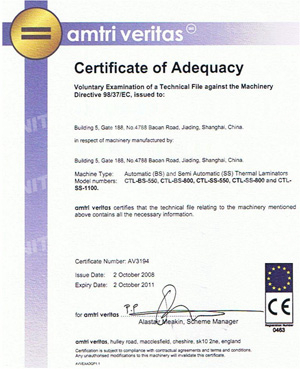

Certificate

Specification:

Model	CTL-SS550	CTL-SS800
Power Supply	AC220V/50Hz	AC220V/50Hz
Power Consumption	3000W	3870W
Max.Sheet Format	500(W)×800(L)mm	800(W)×800(L)mm
Min.Sheet Format	200(W)×200(L)mm	200(W)×200(L)mm
Paper Thickness	115～350g/m²	115～350g/m²
Laminating Speed	20m/min	20m/min
Warm up time	25mins	25mins
Heating System	Hot Roller	Hot Roller
Max.Operating Temperature	150℃	150℃
Feeding	Manual	Manual
Separation	Automatic	Automatic
Main Roller Pressure	Pneumatic Cylinder	Pneumatic Cylinder
Laminating Roller Surface	Chrome	Chrome
Dimension(L×W×H)	2000×1200×1500mm	2200×1500×1600mm
Weight	500.0kgs	600.0kgs

CTL-SS800 CE.pdf
