Your Current Location: Home > Laminating System > Single Sided Laminator

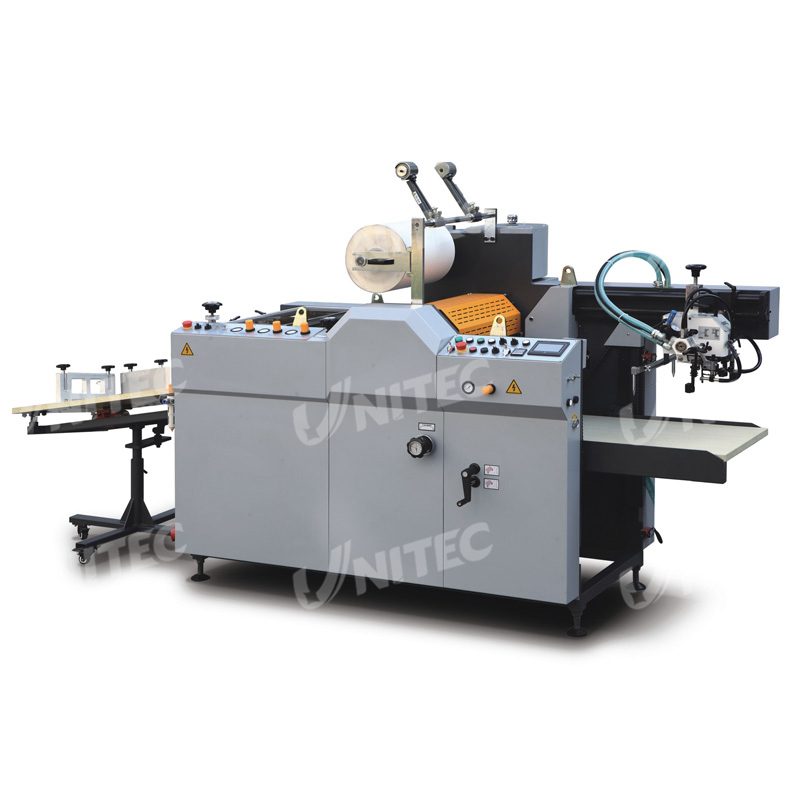

SADF-540

Automatic paper feeding
Automatic paper separating
Pneumatic pressuring system
Man-machine interface system


Packing: two wooden cases
Main Machine:
    Size: 2580x 1470x 1800MM    G.W:  1120.0KGS
Air Compressor:
    Size: 1300x 530x 1030MM      G.W: 100.0KGS


    Specification:





    APPLICATIONS:

    SADF-540 is one of our fully automatic laminators newly developed upon market needs. The most attractive features of the machine are compact structure and humanized design. SCHNEIDER, OMRON etc international brands of electrical and photovoltaic parts equipped perfect the running stability and safety of the laminator. The machine realizes automated operation, and suits two kinds of film, pre-glued film and glueless film for paper lamination. For the laminating treatment of greeting cards, certificates, documents, book covers, packing boxes etc, this model is an excellent choice.

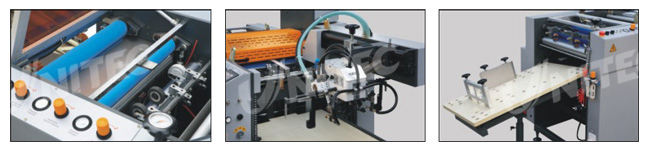

    1. Automatic paper feeder adopts oil-free vacuum pump to feed paper automatically.

    2. Automatic paper feeding system is equipped with no paper protector and paper
        break protector, which are controlled by photoelectric and mechanical systems.
        When no paper or paper break occurs, the machine will stop automatically for self-
        protection.

    3. Man-machine interface system: color touch screen simplifies the machine
        operation.On the touch screen, as long as the operator inputs paper size, overlap
        length and working speed etc., the machine can realize completely automated
        operation. And on touch screen, working status of the machine can be checked
        at any time.

    4. High precision of chrome plated heating roller is equipped with built-in oil heating
        system, which has excellent performance to temperature control. The laminating
        temperature is adjustable upon applications.

    5. Pneumatic pressuring system provides automatically stable pressure to guarantee
        good laminating quality. And the pressure can also be adjusted upon requests.

    6. Air expansion shaft releases film roll, and positions film roll more accurately, and
        also makes the loading and unloading of film roll more convenient.

    7. The combination of air expansion shaft and braking device can adjust film release
        tension and speed.

    8. Film cutter cuts film width to make it meet paper size.

    9. Serrated perforating wheel perforates film edge for the automatic cut of laminated
        paper.

    10. Anti-curvature device: when going though the anti-curvature device, the laminated
          paper shall be leveled at once and won't curve again after cut.

    11. Pneumatic cutting system realizes automatic paper cut.

    12. After cut, the laminated paper will be sent automatically to vibrating receiving
          table and be put into order.

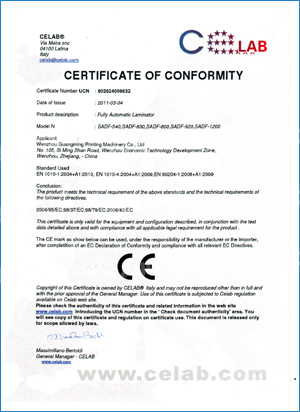

CE --SADF-540 .pdf
