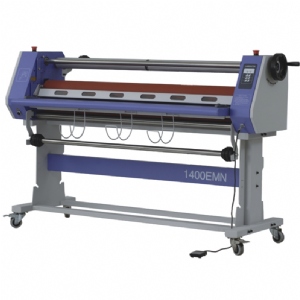

LD-1200EMN/ 1400EMN/ 1600EMN

Roll over the image above to zoom or view large image

COLD

● Electric cold laminator
● Speed and temperature controls
● 2 unwind film shafts
● Swing up feed table
● Photoelectric eye
● Front unwind basket

Specification:

Model	LD-1200EMN	LD-1400EMN	LD-1600EMN
Max Laminating Width	1200mm	1400mm	1600mm
Operation Method			Electric
Max Lifting Thickness of Roller	25mm	25mm	25mm
Pressure Adjustment Method			Separately
Speed	0.7-2.0m/min	0-3.5m/min	0-3.9m/min
Power Suppy	AC110、220V/50、60Hz
Power Consumption	70W	70W	70W
Net Weight	158.0kgs	176.0kgs	215.0kgs
Dimension(L×W×H)	1610×680×445mm	1885×595×1180mm	2085×595×1180mm

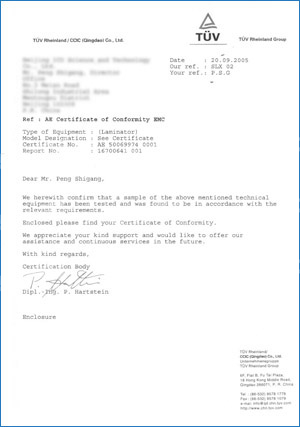

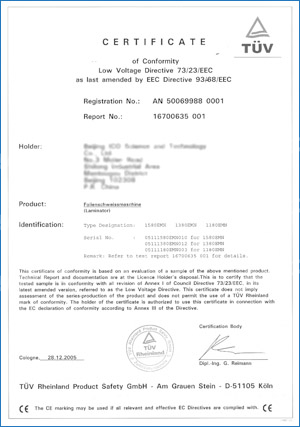

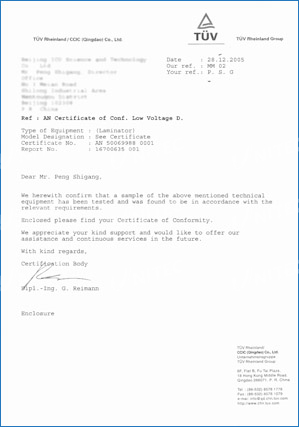

EMN CE.pdf
