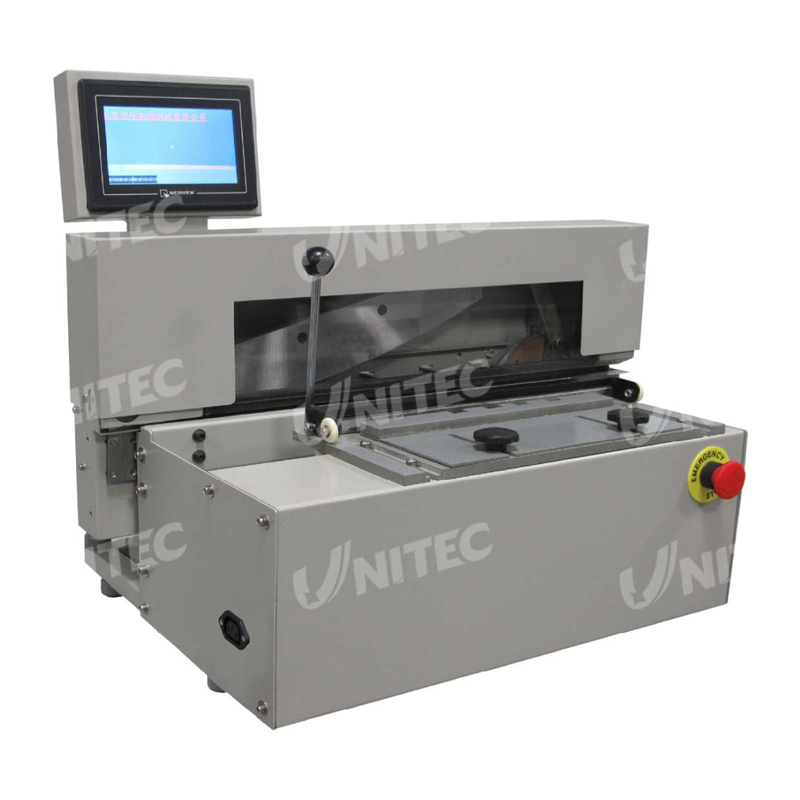

NIC 32A Electrical Tab Cutter
This tab cutter allows you to create your index / tab dividers on books, booklets and single sheet quickly and easily.
It can be used in copy shop, printing house, office, school and etc.
¡ñ PLC control system, programming the cutting position, length and number of sheets as needed.
¡ñ Touchable colour LCD screen, convenient setting.
¡ñ Foot pedal Allowing choose system default position in auto-mode, or control the cutting position manually.
¡ñ Index cutting the bound books as well as single sheet.
¡ñ Up to 31 index dividers to any length up to 320mm.
¡ñ Suitable for paper and cardboard between 70~500gsm.
¡ñ Cutting 30 sheets in a single stroke. Great for repeat or regular jobs.
¡ñ High-quality special blade, exclusive knifetype arc design, cutter body is fully closed to ensure the operator¡¯s safety.
Programming the cutting position, length and
number of sheets by Touchable colour LCD screen.

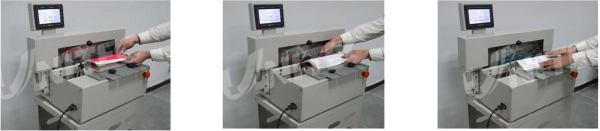

1. Put the sheets against left 2. Move to the second position 3. Page to the next position
side and clamp, step the foot automatically, put the cutted and cut, repeat this activity
pedal and cut off the first part. parts the gap. until finishing the job.
Specification:
|
Model |
|
NIC32A |
| Max.width |
320mm |
| Number of tabs |
2¡«31 |
| Max.number of sheets |
30 sheets |
| Power |
220V |
| Machine weight |
45kg |
| Machine size |
780¡Á620¡Á600mm |
