Your Current Location: Home > Laminating System > Dual Sided Laminator

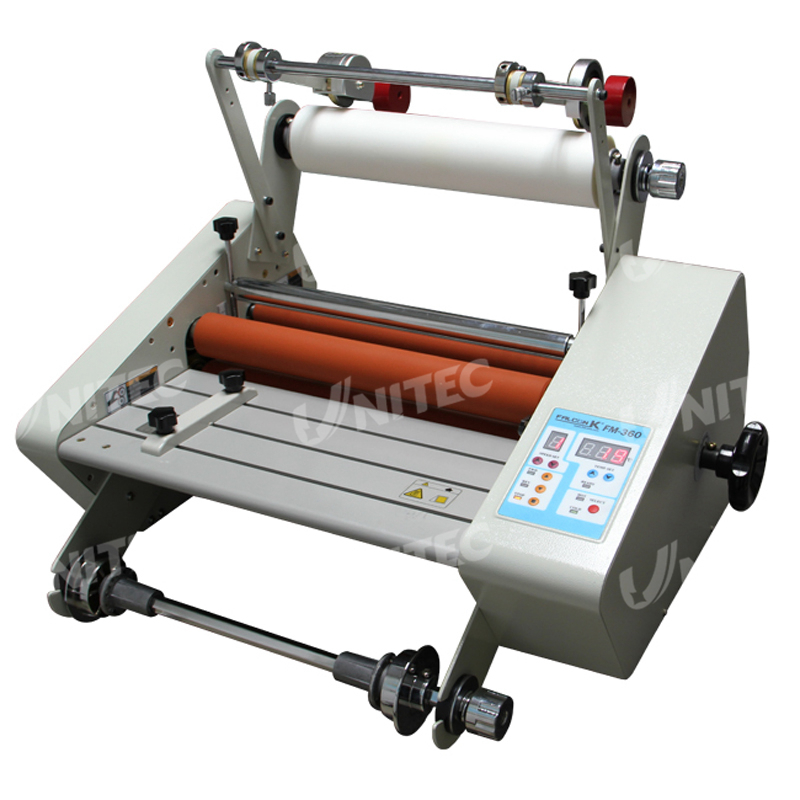

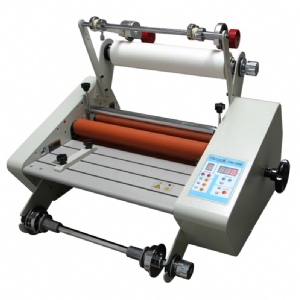

FM-360/ FM-450/ FM-650

Roll over the image above to zoom or view large image

● Single side lamination
● Adjustable temperature control
● Adjustable speed control
● Anti-jam reverse switch

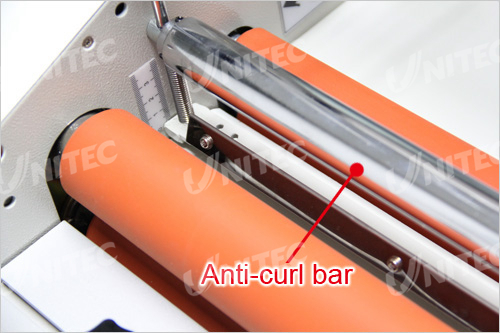

● Anti-curl bar

◆ Model: SH-360
◆ Packing: 1pc/ctn
◆ Carton Size: 83×70×53.5cm
◆ G.W: 35.0kgs/ctn

◆ Model: SH-450
◆ Packing: 1pc/ctn
◆ Carton Size: 95×70×53.5cm
◆ G.W: 60.0kgs/ctn

Product
Details

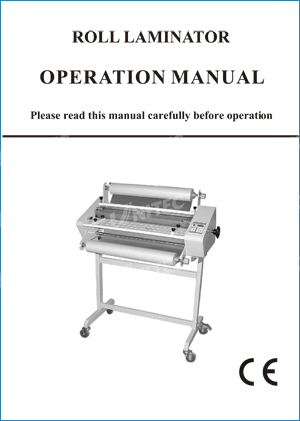

Operation
Manual
Certificate
Demonstration
Video

Specification:

Model	FM-360	FM-450	FM-650
Operate mode	Electric	Electric	Electric
Max.laminating width	340mm	460mm	650mm
Max.laminating thickness	5mm	5mm	5mm
Max.laminating temperature	140℃	140℃	140℃
Max.laminating speed	1.6M/min	1.6M/min	1.6M/min
Recommended film	Up to 250mic	Up to 250mic	Up to 250mic
Diameter of heating roller	44mm	55mm	55mm
Diameter of pull roller	30mm	45mm	45mm
Power supply	100,110,220-240V / 50,60Hz
Power	700W	1100W	1600W
Dimensions(L×W×H)	620×520×400mm	760×520×400mm	910×520×400mm
Weight	30kg	44kg	55kg

FM-360,450 CE certificate+.pdf
