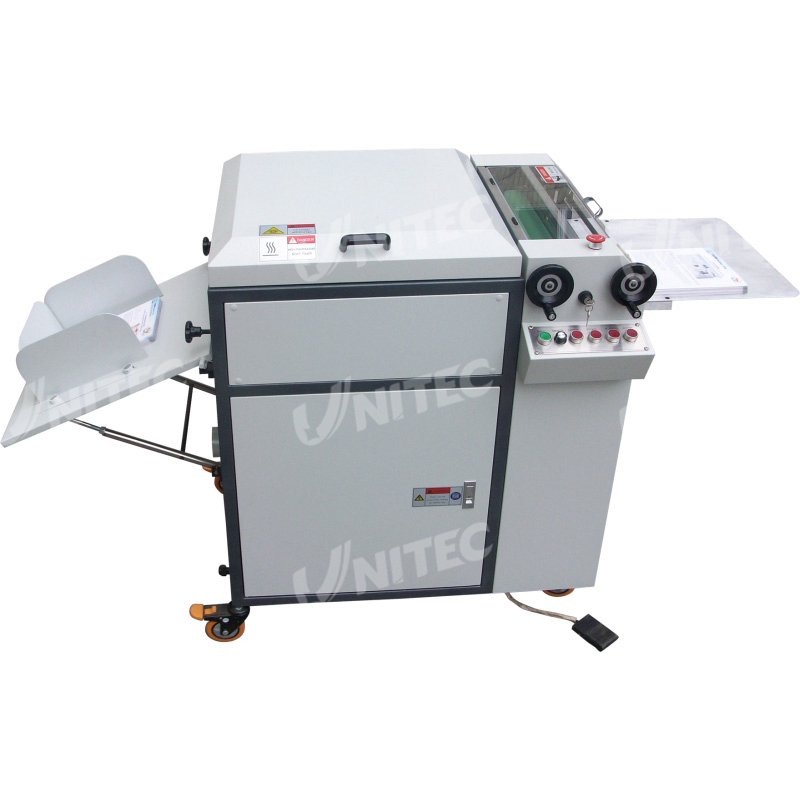

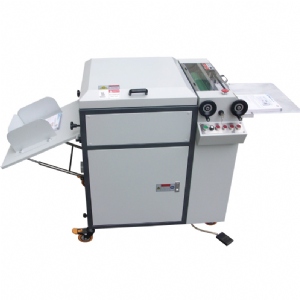

PSGC-380M/ PSGC-480M

Roll over the image above to zoom or view large image

● Equipped with UV curing or IR drying device.
● Roll coating variable speed control.
● Air-suction sheets hold-down throughout
conveyor paper path.
● High velocity blower fan for cooling and exhaust.
● Lower temperature control on the UV lamp
chamber surface.

Product
Details

Specification:

Model	PSGC-380M	PSGC-480M
Max.Sheet Width	350mm(14″)	450mm(18″)
Sheet Wight	150～500g/m²	150～500g/m²
Speed	0-25m/min	0-25m/min
Power	4.2kw	5.2kw
Weight	280.0kgs	320.0kgs
Dimension(L×W×H)	920×750×1085mm	920×850×1085mm
