Model |
|
SSA-003-I-MS |
SSA-003-I-HS |
| paper size |
A3+(480*320)mm
A3(420*297)mm
A4(297*210)mm |
A3+(480*320)mm
A3(420*297)mm
A4(297*210)mm |
| paper thickness |
0.20mm-0.35mm
(180g/m2-350g/m2) |
0.20mm-0.35mm
(180g/m2-350g/m2) |
| paper type |
common paper &
glossy paper |
common paper &
glossy paper |
| cutting speed |
200 pieces/minute |
280 pieces/minute |
| loading |
12sheets or total
thickness is 3mm |
12sheets or total
thickness is 3mm |
long blade
cutting size |
150mm |
225mm |

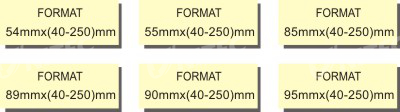

| rotary blade cutting size |
| 5-54mm (norm size) |
| 5-50/5-55mm (select size) |
| 3-85/3-89/3-90/3-95mm select size |
| 2-85/2-89/2-90/2-95mm (select size) |
| customize | |
| 5-54mm (norm size) |
| 5-50/5-55mm (select size) |
| 3-85/3-89/3-90/3-95mm select size |
| 2-85/2-89/2-90/2-95mm (select size) |
| customize | |
| dimensions |
710 mm¡Á 540 mm¡Á330 mm |
710 mm¡Á 540 mm¡Á330 mm |
| weight |
23.5 kg |
23.5 kg |
| power supply |
AC 90-260V£¬50/60HZ, 5A |
AC 90-260V£¬50/60HZ, 5A |
