 Your Current Location: Home > Laminating System > UV Coater

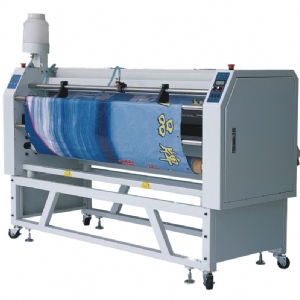

1600VLAII
¡ñ Automatically collect remaining liquid system
¡ñ Automatically recycling cleaning system
¡ñ Graphic take up and release mandrel system
¡ñ Cold and hot duple drying systems
¡ñ Temperature digital display
¡ñ Easily put material on mandrel without dismantle

    Specification:

    Model

    		 1600VLAII
    Max Filming Width 1600mm
    Max Filming Length 50mm
    Temperature Adjusting Range 40-120¡æ
    Speed Adjusting Range 300-1000mm/min
    NominalIn Put Power 230V/400V; (3W+N+PE); 50Hz
    NominalIn Put Power 4500W
    Nominal In Put Current   10.6A/2A
    Electric Machine Working Voltage   230V
    Preheating Time   15mins
    Elevation   £¼1000m
    Max Enviroment Temperature   40¡æ
    Enviroment Humidity   30%-70%
    Protection Type of Equipment   Class
    Protection Grade of Control Cabinet   IP20
    Contour Dimension(L¡ÁW¡ÁH)   2030¡Á705¡Á1200mm
    Net Weight(kg): Master Machine(kg)/Rack(kg)   258.0kgs/58.0kgs
    Transporting Weight(kg): Master Machine(kg)/Rack(kg)   346.0kgs/90.0kgs



    Mode of fuse

    		R015(¦Õ10.3¡Á38£©
    Fuse of heating box 16A
    Fuse of air-dry fan 2A
    Fuse of electrical machinery 1A
    Rheostat fuse 0.5A
    Fuse of heating box fan 0.5A
    Noise 60db
