 Your Current Location: Home > Printing & Finishing > Creasing & Perforating

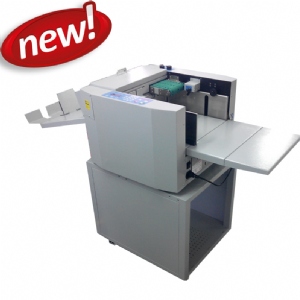

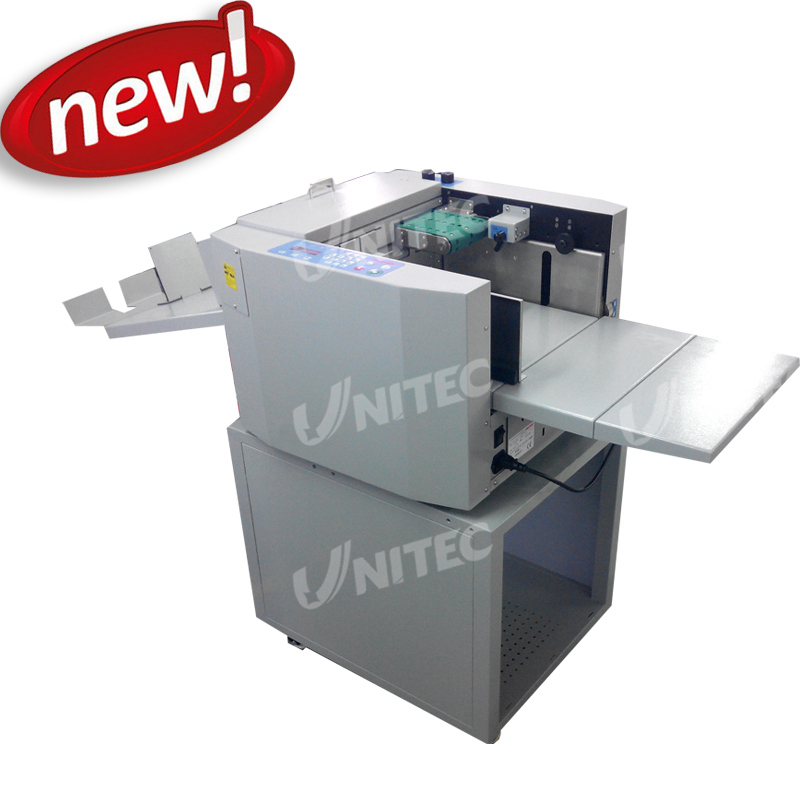

Crease 335B
¡ô Interchangeable tools
¡ô Speed faster than 1 sheet A4/second
¡ô Crease tools/Cross perforating bar/Linear tools
¡ô Floor space requirement less than 0.5 square meter

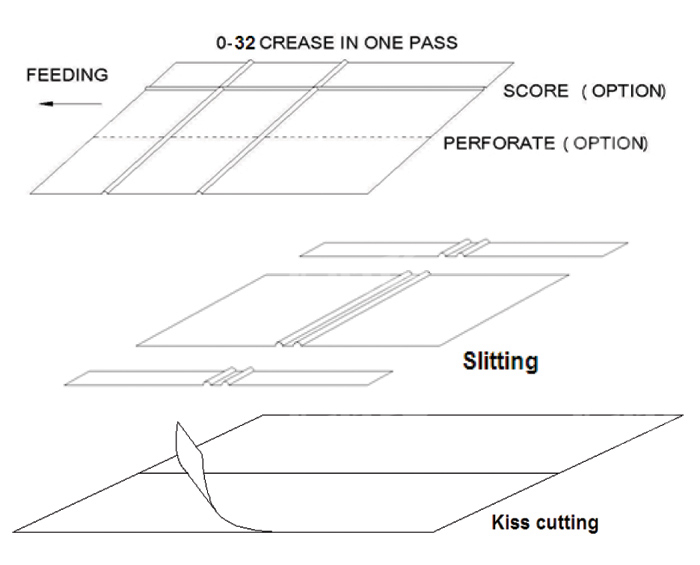

¡ô Combination +/- of creasing tool in one pass for book covers

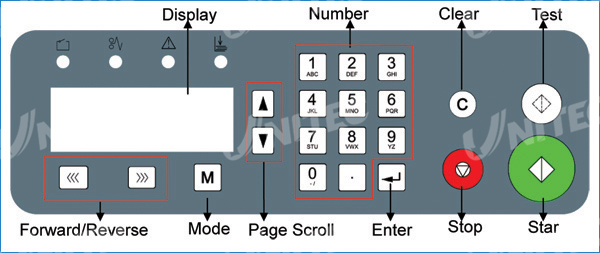

    Easy-operating control panel

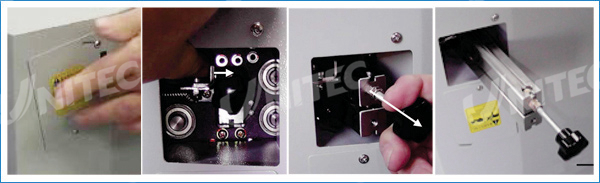

    Easy exchangeable


    Multiple design

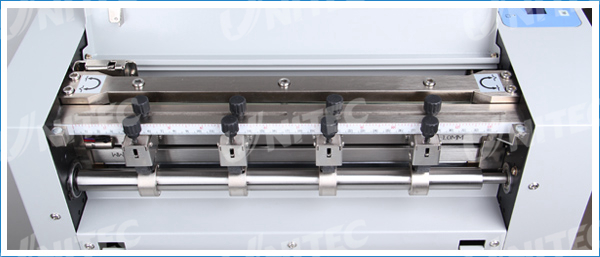

    Tools display

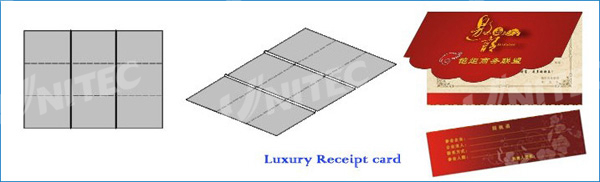

    Single crease


    Multi creases


    Perforate

    Crease + Perforate




    Specification:

    Model

    		 Crease 335B
    In-Feed Paper Size Min:140mmx150mm Max:330mmx650m
    Paper Weight 100g-400g/0.1-0.4mm
    Crease width 1.0mm
    Cross crease/perforate Maximum 32 creases per sheet
    Accuracy ¡À0.2mm
    Linear perforating tool Up to 4 sets 12/24TPI
    Speed 75 Sheets/Min(A4 one crease)
    Infeed Type Suction feed
    Out Put Capacity 30mm
    Operation Display LCD Panel
    Power Supply 110V/220V,50HZ

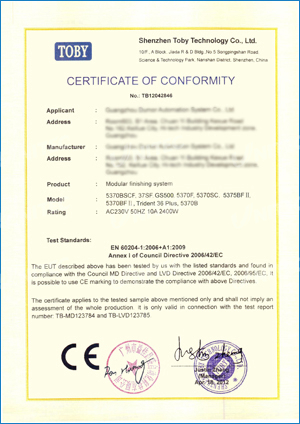

Certificate of conformation.pdf
