Your Current Location: Home > Binding System > Combination Binding Machine

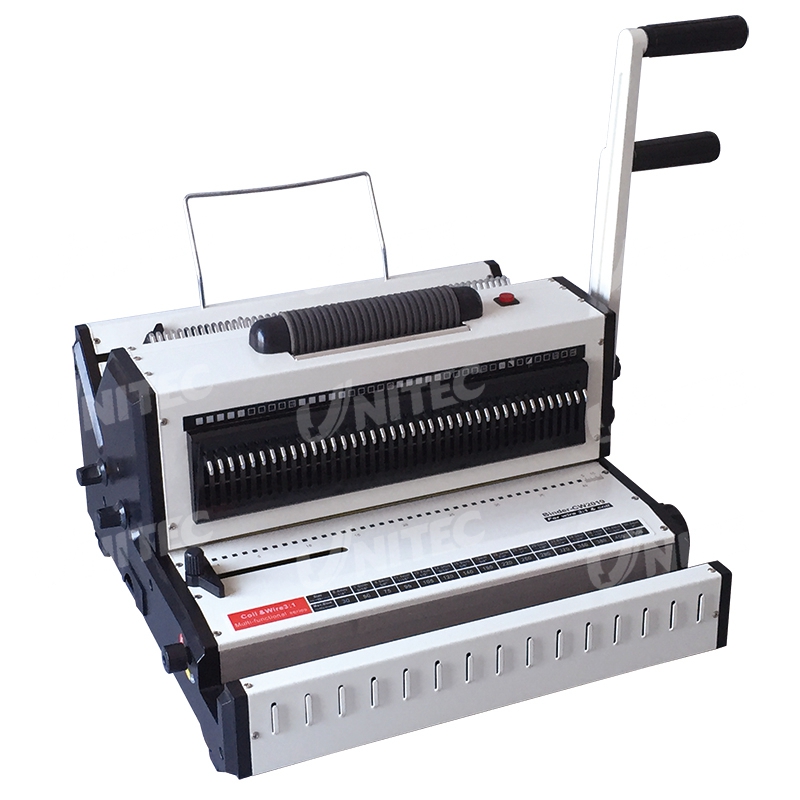

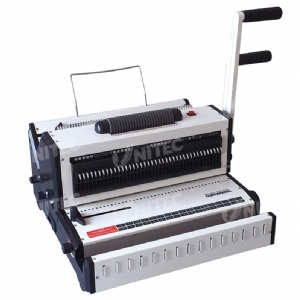

CW2019

Coil + Wire 3:1


    Specification:
    Max. Punch: 20 sheets(70-80g)/pvc 5sheets
    Max. Bind: Arbitrary(coil)/120sheets(wire3:1)
    Paper Size: F4(330mm)/A4/Letter/etc.(all selectable pins)
    Paper Margin: 2.5/4.5/6.5mm
    Hole Size: §¶4mm round(coil)/4¡Á4mm square(wire3:1)
                or §¶4¡Á5mm oval(coil)/4¡Á4mm square(wire3:1)
    Hole Distance: 6mm 56holes(coil)/8.47mm(wire3:1)
                          or 6.29mm 54holes(coil)/8.47mm(wire3:1)
    Machine Size: 450¡Á430¡Á270mm
    Carton Size: 565¡Á505¡Á320mm
    N.W./G.W.: 26kgs/28kgs/0.091m3
