Your Current Location: Home > Binding System > Glue Binder/Perfect Binder

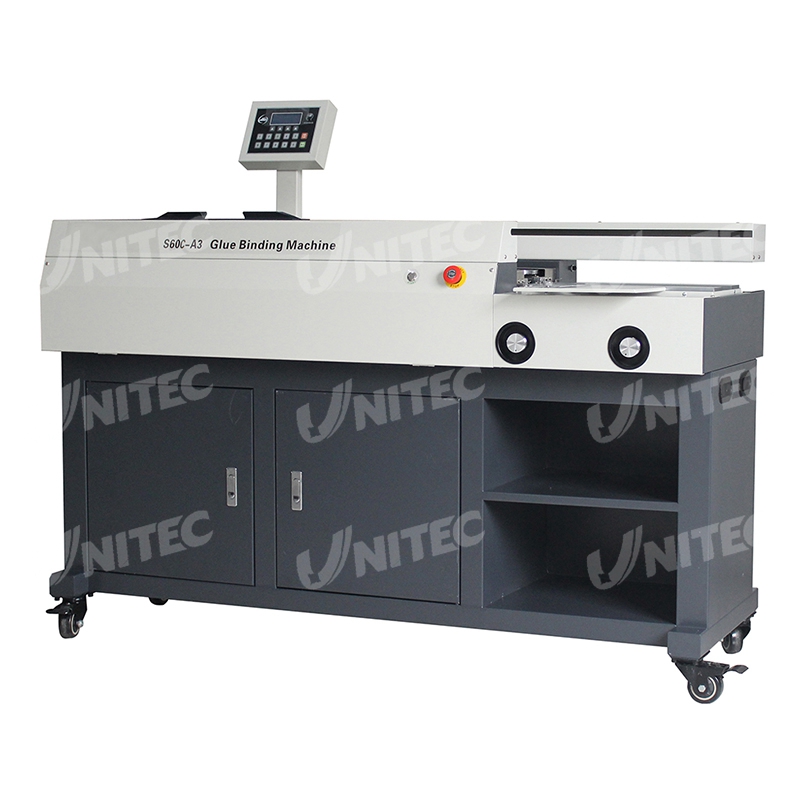

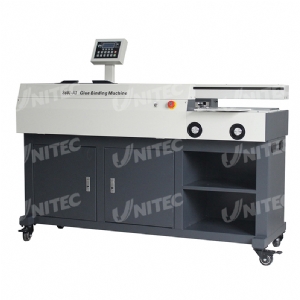

S60C-A4/A3

Roll over the image above to zoom or view large image

Automatic Perfect Binder

◆ Optimized instruction design.
◆ Simple operation panel
◆ Multi-parameter setting & LED display
◆ Adjustable clamp table

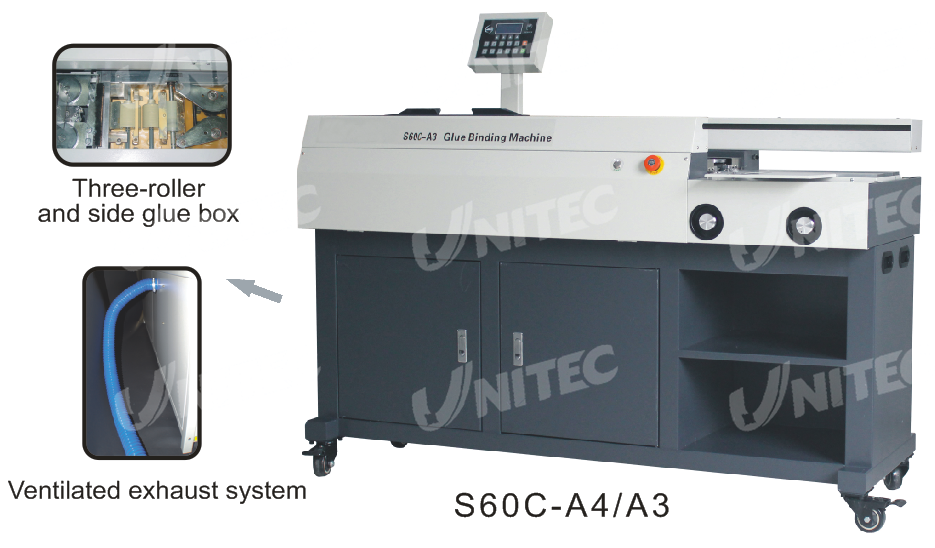

◆ 3 rollers and side glue binding system
◆ High-power motor, 20 teeth sun milling cutter
◆ Optional Creasing machine
◆ Optional Smoke extraction device

Product
Details

Specification:

Model	S60C-A4	S60C-A3
Max.binding length	310mm	425mm
Max. binding thickness	60mm	60mm
Binding Efficiency	200-400books/h	200-400books/h
Milling cutter	Sun knife+small milling cutter	Sun knife+small milling cutter
Duration for glue melt	＜35min	＜35min
Glue Roller	Three rollers	Three rollers
Side Glue	YES	YES
Power	AC220V/110V±10% 50HZ/60HZ 2.4KW	AC220V/110V±10% 50HZ/60HZ 2.4KW
Dimension(W×D×H)	1370×520×1000mm	1590×520×1000mm
Weight	170kgs	200kgs
