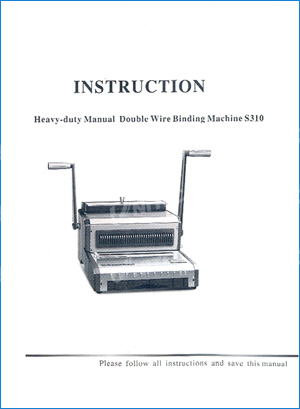

  Manual
• Service

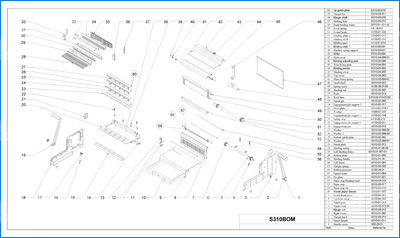

  Manual

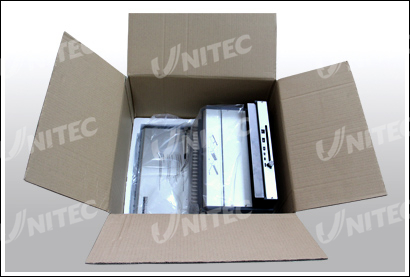

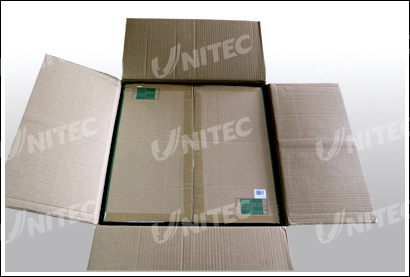

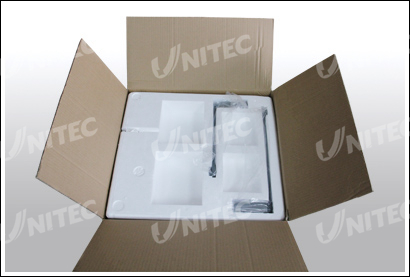

• Packing

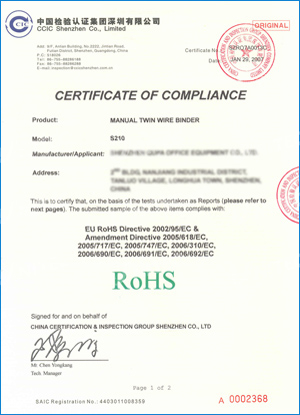

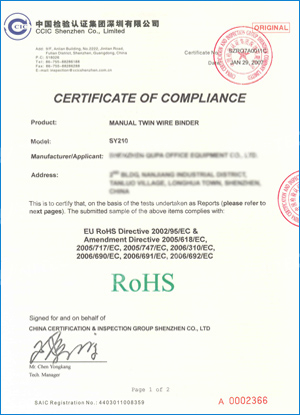

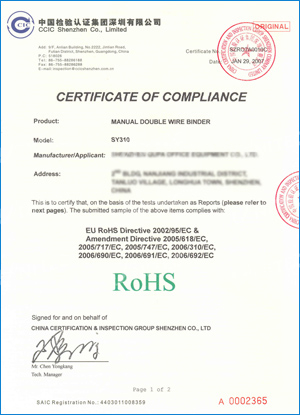

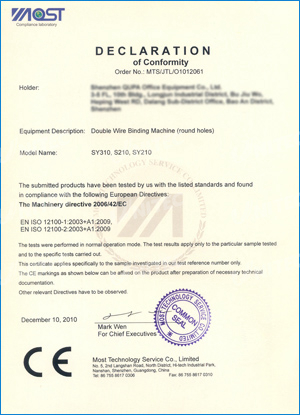

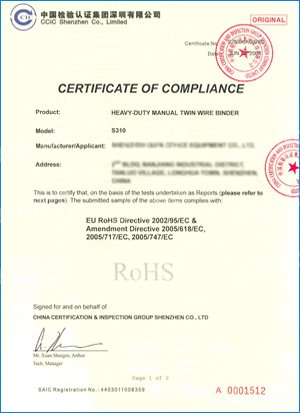

• Certificate

New Expanded Models:

Puching Blocks	Pattern Number
WB-2410	34 square holes 3:1
WB-2430	23 square holes 2:1
WBY-2410	35 round holes 3:1
WBY-2430	23 round die 2:1




Specification:

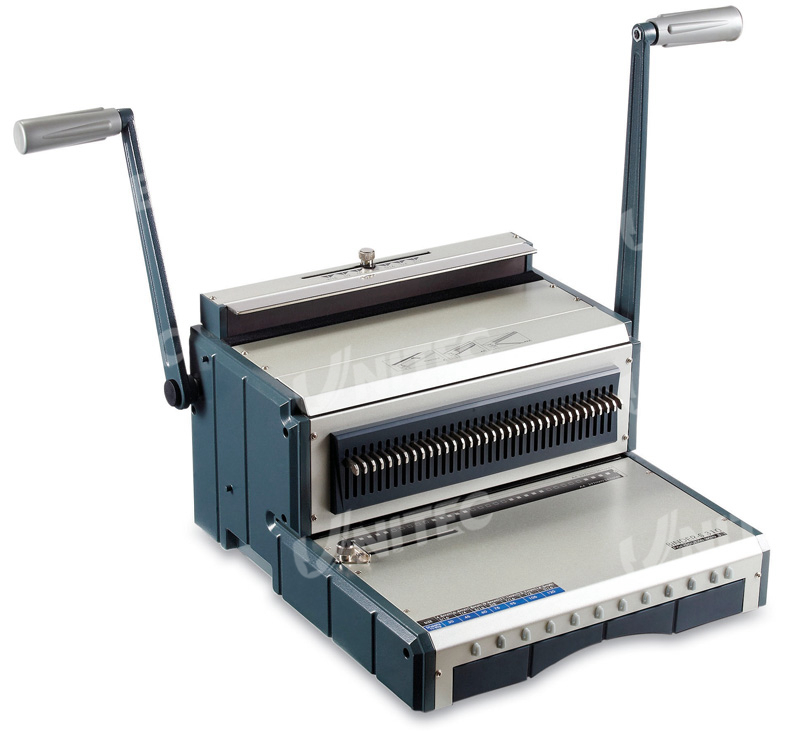

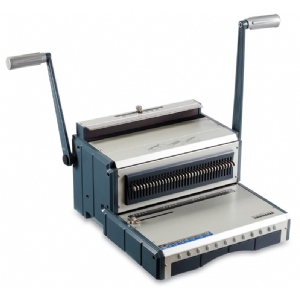

Model		WB-2410	WB-2410E
Max.Punching Capacity		25sheets(80g)	15sheets(80g)
Max.Binding Capacity		120sheets	120sheets
Max.Binding Width		A4(297mm)	A4(297mm)
Margin Depth Adjustment		3-8mm	3-8mm
Power Supply			AC110、220V/50、60Hz
Power Consumption			90W
Pitch		3:1	3:1
Net Weight		17.0kgs	24.0kgs
Dimension(L×W×H)		560×550×300mm	560×550×300mm

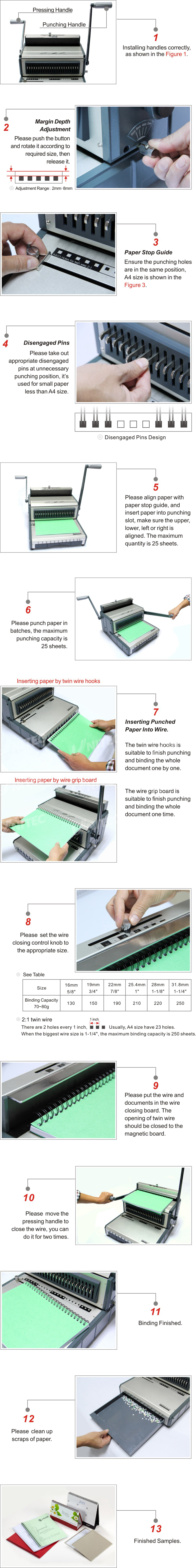

                           WB-2410 Operating Instructions
