 Your Current Location: Home > Binding System > Punch Machine

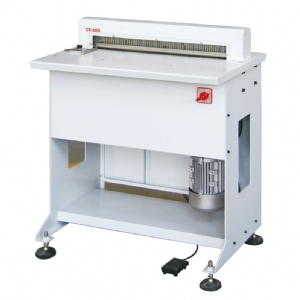

CK600


Electrical Punch Machine

¡ô Easy control and stesdily
¡ô Manual feed and controlled by the foot-pedal
¡ô Used for all kinds of plastic and paper material
¡ô Mould easily changeble
¡ô Margin of paper is easily adjustable
¡ô Smooth ounching holes

     Punch Die Patterns

    Mould No.
    Pitch

    Punching Hole

    Pitch (mm)
    Hole Size
    Pins
    Wire Size
    HF301
    3:1
    8.47
    4¡Á4
    71
    3/16¡«9/16"
    HF302
    3:1
    8.47
    4.5¡Á4
    71
    3/16¡«9/16"
    HF303
    3:1

    8.47
    4.2¡Á4.2
    71
    3/16¡«9/16"
    HF501
    3:1

    8.47
    4¡Á3
    71
    Spiral
    HO401
    3:1

    8.47
    ¦µ5
    71
    3/16¡«9/16"
    HF304
    3:1
    8.47
    5¡Á5
    71
    7/16¡«9/16"
    HF305
    2:1

    12.7
    4¡Á4
    47
    1/4¡«9/16"
    HF306
    2:1

    12.7
    4.5¡Á4
    47
    1/4¡«9/16"
    HF307
    2:1

    12.7
    4.2¡Á4.2
    47
    1/4¡«9/16"
    HF308
    2:1

    12.7
    6¡Á6
    47
    5/8¡«1+1/2"
    HO402
    2:1

    12.7
    ¦µ5
    47
    5/8¡«3/4"
    HF309
    2:1

    12.7
    4¡Á4.5
    47
    5/16¡«5/8"
    HT503
    4:1

    6.35
    4¡Á3
    94
    Spiral
    HO403
    4:1

    6.35
    ¦µ3.5
    94
    Spiral
    HF310
    12.7

    12.7
    3¡Á8
    47
    Comb


    Specification:

    Model

    		 CK600
    Punching length 600mm
    Punching Speed 68 strokes/min
    Punching thichness(80g) 2.5mm(80g8m2paper)
    Machine Weight 125.0kgs

    Power

    		 380VAC/3PH/50HZ/0.7KW/1.7A
