Your Current Location: Home > Binding System > Glue Binder/Perfect Binder

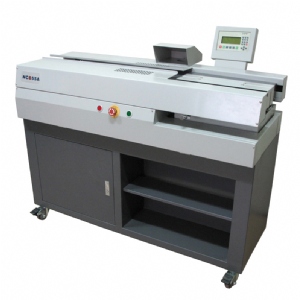

NCB55A

Roll over the image above to zoom or view large image

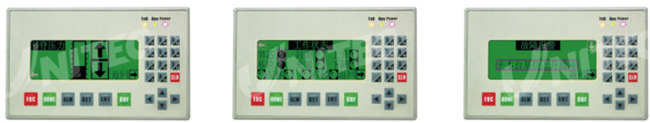

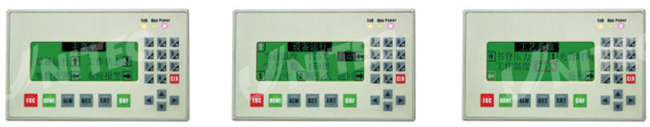

PLC Control Panel

Product
Details
Demonstration
Video

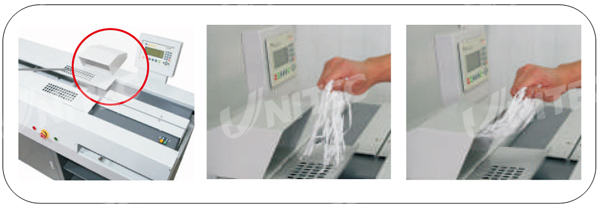

Ventilated Exhaust System

◆Personalized interface display           ◆Esay to swich the operating               ◆Convenient to adjust temperature,
     Support English, French,                                                                               glue and cover thickness.
     German, Russian and
     other languages


◆Spine pressure adjusting                  ◆Display of working status                   ◆Error alarm, easy to maintain
                                                               real-timely

Specification:

Model		NCB55A
Max.of book size		735×550mm
Min.of book size		80×60mm
Book thickness		2 sheets-55mm
Binding in-page		1 sheet-2 foldout
Milling cutter mode		12-gear Disk milling cutter and small milling cutter
Milling cutter protection board		Close automatically
Warm up Time		About 30mins
Mechanical speed		Up to 300 cycles/hr
Power Supply		220V
Machine Weight		205.0kgs
Machine Dimensions		1380×680×1200mm
