Your Current Location: Home > Binding System > Combination Binding Machine

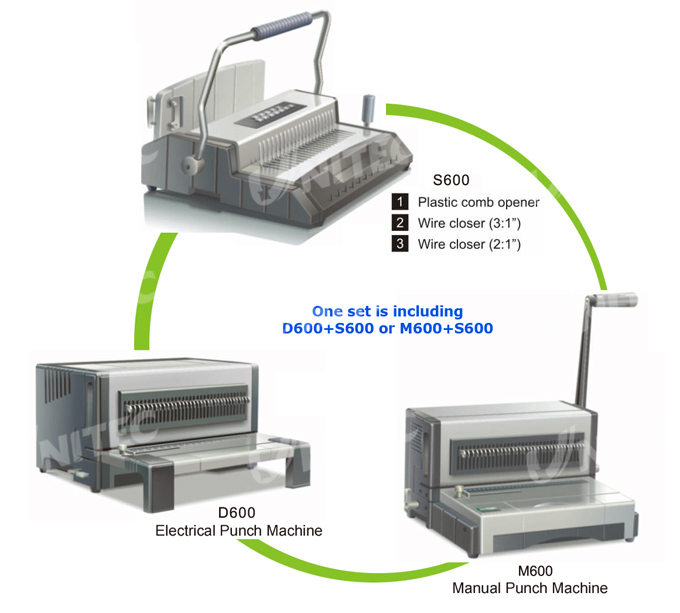

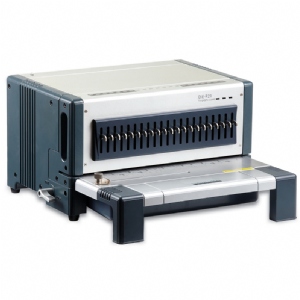

D600 / M600 / S600

Roll over the image above to zoom or view large image

Die Set

Product
Details

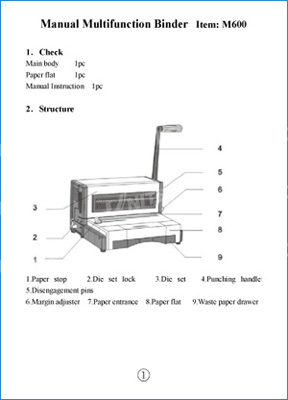

Operation
Manual

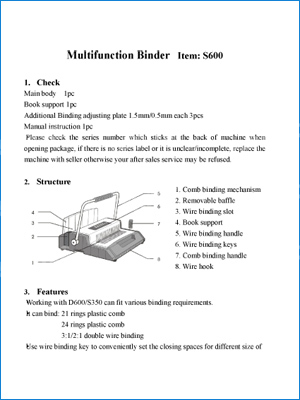

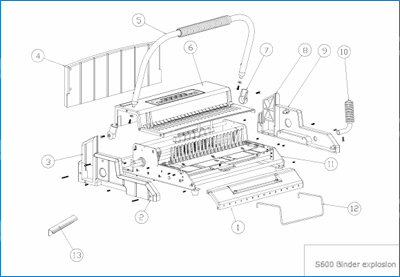

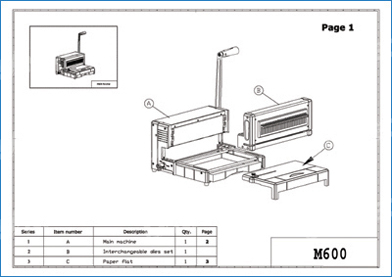

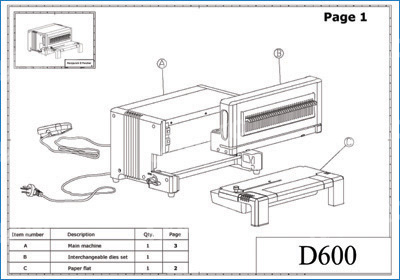

Service
Manual

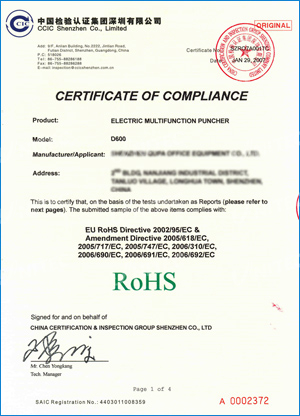

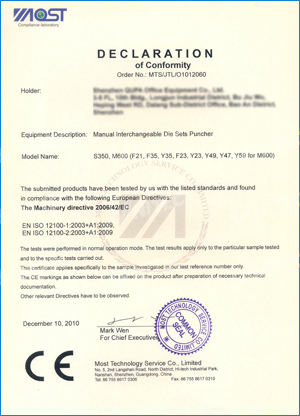

Certificate

Interchangeable Die Binding Machine

      Puching Blocks

Pattern Number

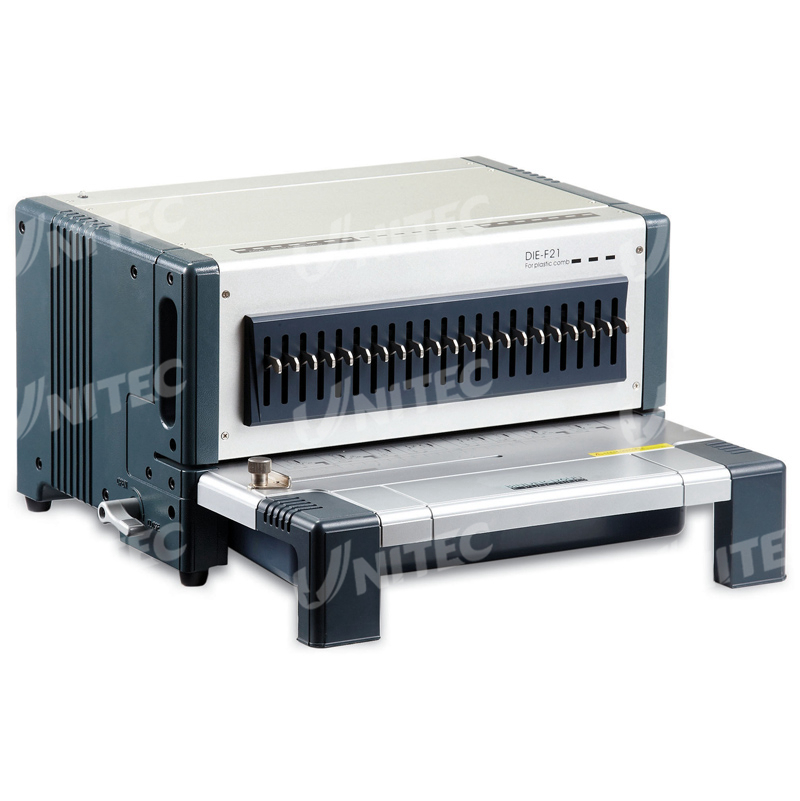

      21 die plastic comb

D600-F21

      35 square die 3:1

D600-F35

      35 round die 3:1

D600-Y35

      23 square die 2:1

D600-F23

      23 round die 2:1

D600-Y23

      49 round die spiral

D600-Y49

      59 round die spiral

D600-Y59

Specification:

Model	D600	M600	S600
Max.Punching Capacity	25sheets(80g)	25sheets(80g)
Max.Binding Capacity			500 sheets(51mm rings)
Max.Binding Width	A4(297mm)	A4(297mm)	A4(297mm)
Margin Depth Adjustment	3-9mm	3-9mm
Net Weight	20.5kgs	8.3kgs	9.5kgs
Dimension(L×W×H)	430×455×235mm	365×550×530mm	320×460×285mm

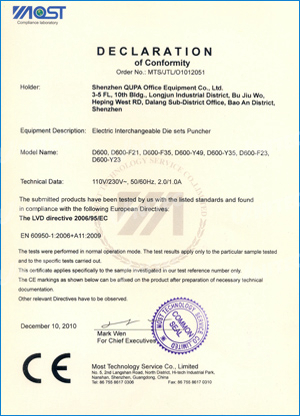

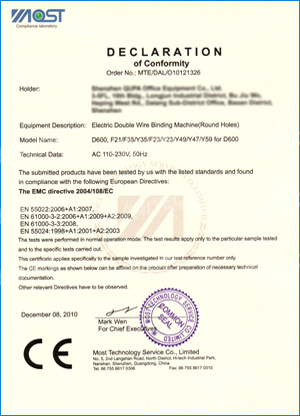

CE D600.pdf

CE M600.pdf

RoHS D600.pdf

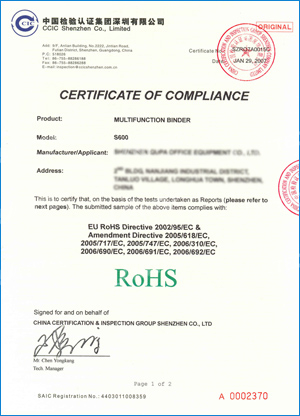

RoHS S600.pdf
